Hexagonal Mesh Fence

Galvanized Hexagonal Mesh Fence:

Galvanized hexagonal wire is manufactured from hot-dipped galvanized steel wire, and we use heavily galvanized technical to make it more resistant to corrosion and have a longer life.

Process includes galvanized after weave and galvanized before weave.
Twist type: in normal twist or reverse twist.



Galvanized hex wire is ideal as garden fencing for protecting lawns, trees, fruits, vegetable and climbing plant from unwanted rodents. It also protects small animals such as birds, chickens or rabbits, and can be quickly and easily built a simple rabbit cage. So, hexagonal wire also called rabbit wire or rabbit fence.

Galvanized hexagonal wire mesh sizes:

Mesh size: 13mm, 25mm, 40mm, 50mm, 75mm, and 100mm.
Wire thickness: 0.7mm - 1.6mm.
Usually mesh size/wire: 13mm/0.7mm, 16mm/0.7mm, 20mm/0.7mm, 25mm/0.8mm, 40mm/0.9mm, 50mm/1.0mm, 75mm/1.2mm, 75mm/1.4mm, 100mm/1.6mm.
Width: 0.5m, 0.75m, 1.0m, 1.5m, 1.8m, 2.0m
Length: 10m, 25m, 50m, or cut it to your desired length
Packed in rolls.

The most popular hexagonal mesh fences:
mesh size(mm)/wire thickness(mm)/width(m)/length(m)
13 mm x 0.7 mm x 0.5 m(10 m, 25 m)
13 mm x 0.7 mm x 1.0 m(10 m, 25 m)
20 mm x 0.7 mm x 0.5 m(25 m)
20 mm x 0.7 mm x 1.0 m(25 m)
25 mm x 0.8 mm x 0.5 m(10 m, 25 m)
25 mm x 0.8 mm x 1.0 m(10 m, 25 m, 50 m)
25 mm x 0.8 mm x 1,5 m(50 m)
40 mm x 0.9 mm x 1.2 m(50 m)
40 mm x 0.9 mm x 2.0 m(50 m)
50 mm x 0.9 mm x 1.5 m(50 m)
50 mm x 1.0 mm x 1.8 m/2.0 m(50 m)
75 mm x 1.2 mm/1.4 mm x 1.8 m/2.0 m(50 m)
100 mm x 1.6 mm x 1.8 m/2.0 m(50 m)

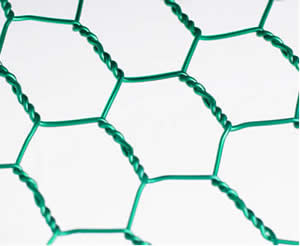

PVC Coated Hexagonal Wire Fence, 13-75mm mesh, 0.6-1.6mm wire

PVC coated hexagonal wire is woven from galvanized and coated with polyvinyl chloride (PVC) green wire.

Weaving pattern: Straight twist, reverse twist, double-direction twist.

Characteristic: Our PVC coated hexagonal wire is woven into tightly twisted mesh by using superior quality iron wire, firm in structure and with flat surface and enjoy such properties as corrosion resistance, aging resistance, sunshine resistance and weather resistance. It is usually in green color, and has beautiful appearance. PVC-coated hexagonal wire fence has longer serves life than heavily Galvanized wire.

Usage: It is used for breeding chicken, duck, goose, rabbit, and also used as fencing in zoo, machinery equipment's protection, speedway's fencing, stadium to purse net, the virescence belt protection mesh on the road. This hexagonal wire is ideal for the construction of a smaller or larger children's zoo, and we therefore also called rabbit wire. Galvanized and PVC hexagonal wire also can be used for rabbit fencing to protect your organic garden from rascally rabbits. If we use the mesh to make container whose shape is like a box, then fill the container with riprap, it could be used for protecting and holding out the sea wall, hillside, bridge and other related civil engineering, it is the superior material for flood control and fighting a flood.

PVC Coated Hexagonal Wire Fence
Mesh size (mm)	Wire diameter (mm)	Width (m)
13mm	0.6mm - 1.0mm	0.5 - 1.0
20mm	0.6mm - 1.0mm	0.5 -1.5
25mm	0.7mm - 1.3mm	0.5 - 1.5
30mm	0.85mm - 1.3mm	1.0 - 2.0
40mm	0.85mm - 1.4mm	1. 0 -2.0
50mm	1.0mm - 1.4mm	1.0 - 2.0
75 mm	1.2 mm - 1.6 mm	1.5 - 2.0
Length available in 10 m, 25 m, or 50m



Note: The thickness of PVC Coating is usually 0.2-0.4mm, others may arranged as per buyers request;
Package: Normally each roll packed in water proof paper, then in termal foil (Shrink Plastic)
Special specifications can be produced.
